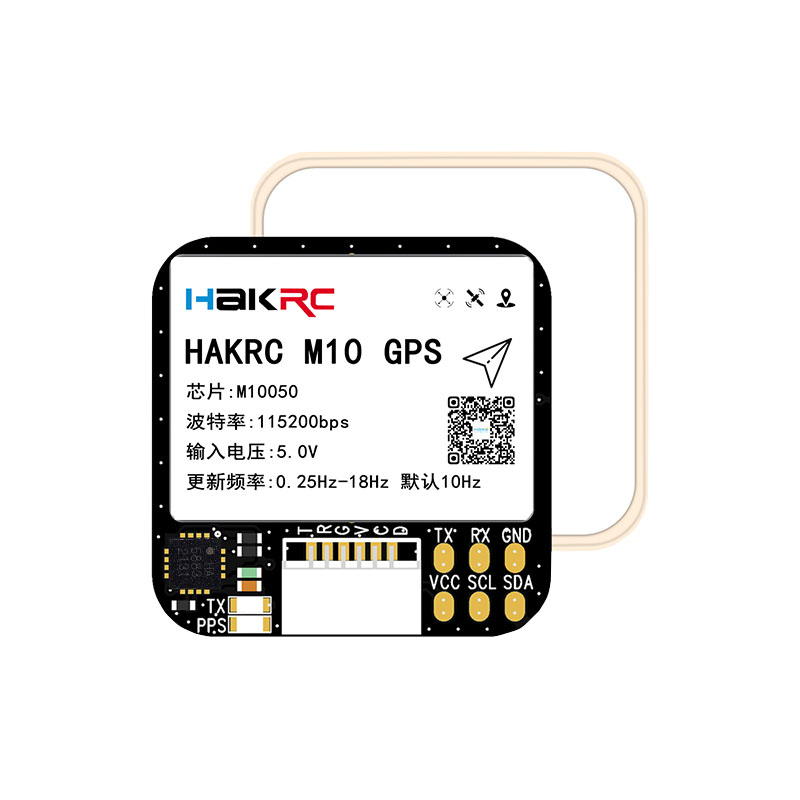

Product Details

72 channels for receiving satellite signals, low power consumption, high sensitivity G-MOUSE signal:

The onboard 3.3V voltage regulator RF filter provide an excellent working environment for the GPS module:

The 15  15mm right circularly polarized patch antenna provides the best balance point performance for the current GPS module, with a built-in high-precision magnetometer QMC5883L;

Built in TCX0 crystal Farad capacitor, combined with a 1-10Hz positioning rate, enable GPS to have faster star speed;

Concurrent GNSS patch antennas with speeds up to 10Hz:

Horizontal positioning accuracy (GPS GLONASS) 2.5 meters CEP;

Satellite support:

GPS: L1C/A, GLONASS: L1C/A, Glieo: E1 BDS: B1l, B2l, B1C, B3 SBAS: L1, QZSS: L1C/A




Product parameters:




1. BF/INAV protocol: UBLOX;

2. Speed accuracy: 0.05m/s

3. Horizontal position accuracy:<2.5m

4. Cold start: 29s:

5. Warm start: 2s:

6. Tracking navigation: -162 dBm;

7. Capture: -160dBm;

8. Cold start: -146 dBm;

9. Input voltage: 3.3-5V;

10. Switching frequency: 1Hz-10Hz;

11. Default value: 10Hz;

12. Maximum height: 50000m;

13. Maximum speed: 500m/s:

14. Maximum acceleration: ≤ 4G;

15. Baud rate: 4800-115200bps;

16. GPS SAM-M8Q for accessing Uart (Tx. Rx):

17. Compass QMC5883L for accessing 12C (DACL)
